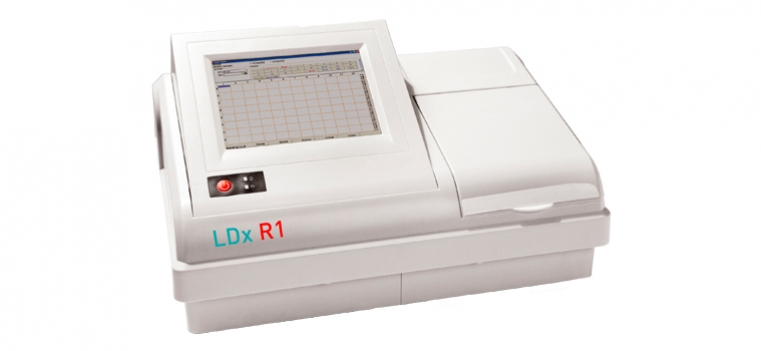

LDx R1 - ELISA Microplate Reader

LDx R1 is the fastest in the segment of ELISA microplate reader designed to meet the latest requirements of clinical laboratories.

overview

The LDx R1 is by far, one of the fastest ELISA plate reader in its segment. The reader offers ease of operation and works on Windows OS. LDx R1 features 8 inch touch screen display and an inbuilt shaking function with variable speed adjustment capabilities. The reader is uniquely designed and guarantees extended lamp life.

Features

User Friendly Operation
Fast In segment ELISA Plate Reader
Windows based Operating System with 8 inch touch screen Display
Long Lamp Life with Unique software and Hardware design
Inbuilt Shaking function with variable Speed Adjustment

Technical Specifications

Light source –Tungsten Halogen Lamp
Wavelength Range – 400- 750 nm
Filters – Standard filters 405nm, 450nm, 492nm, 630nm and Maximum 8 filters
Measurement Range – 0.00 to 4.5 Abs.
Resolution – 0.0001 A
Linearity -± 0.5% or <0.025 A
Lamp Saving mode
Light source zero dispersion monochromatic optical fiber testing system
Display – Built- in XP System, 8 inch large touch screen
Save Information – more than 300 test programs, results of 50 pieces of 96 wells, 100000 test results
Interface – 2 USB two-way communication interface, 1 RS232,1 VGA, 1 LAN
Measurement methods – Single wavelength, dual wavelength, two points method, dynamic assay, multiple wavelengths
Blank ways – Single well blank, multiple wells bank, row and columns blank
Calculation method – Linear, Conic, Semi- log, In, Log- Log, Point – Point, Four Parametric, Spline
Measurement Speed – Single wavelength <3 seconds/96 wells, dual wavelength <9 seconds/96 wells
Repeatability differences - <0.1 % or ± 0.0025 A
Rows and Columns Difference : < 0.01 A
Power Supply : 12 V DC (100 V – 240 V wide input voltage range);
Temperature : 5° C - 40° C;
Humidity : 10-90%
External Dimension : 52.5 cm (20.7 in) x 42.0 cm (16.5 in) x 26.0 cm (10.20 in)
Net Weight : 9 Kg

download Brochure
