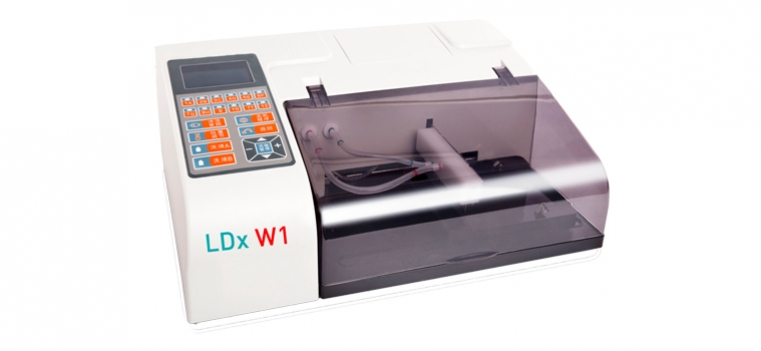

LDx W1 - ELISA Microplate Washer

LDx W1, a Microplate washer designed to wash any micro well of any immunoassay leaving minimal residues

overview

LDx W1 is most suitable for flat, U/V-bottom microplates with 8 & 12 microplate configuration. The system offers a flexibility to name, edit and save different design programs. LDxW1 operates leaving minimal residues (≤ 0.7µl) and offers option to create wash program for strips and whole plate.

Features

Suitable for flat, U/ V–Bottom Microplates with 8 & 12 Microplates
Easy to name, edit and save different wash programs
Lowest Residual Volume less than 0.7ul
Option to create wash program for strips and whole plate.

Technical Specifications

Plate models : Flat, U & V bottom microplates (96-well & 48-well)
Manifold types : 8 & 12 way
Wash times : 1 to 99 times adjustable
Wash lines : 1-12 lines selectable
Residual volume : <0.7 ~ 1/ well
Wash mode : Plates or strips
Dispensing uniformity : CV < 1.5%
Dispensing Volume: 50-950 ~1. Interval 50 ~ 1 adjustable ( May extend to 0-6000 ~ 1. Interval 25~1 adjustable)
Number of dispensing channels : 3 channels
Soaking & Shaking time : 0-999 (seconds/minutes/hours) adjustable
Aspiration time : 0.1 – 9.9 seconds adjustable, interval 0.1 second
Pipeline wash time 0-240 seconds adjustable
Distilled water automatically wash interval : 0-20 plates
Bottom holder is in slant position to pump out all waste water completely
Waste water full sensor

download Brochure
