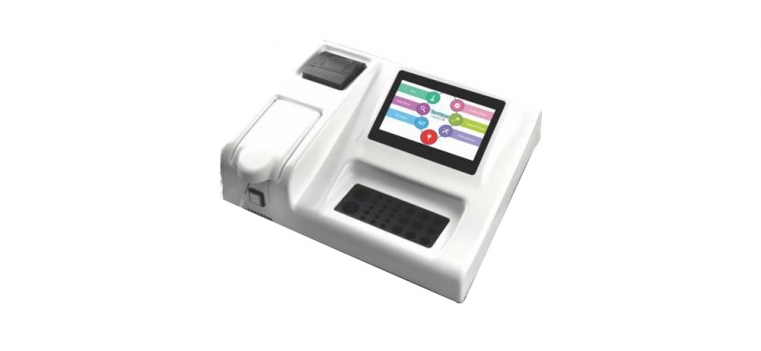

• Most versatile analyzer having clinical chemistry, turbidimetry, and coagulation mode with Multipurpose Incubator
• 3 Reading mode for flow cell, cuvette & tube
• Easy to use with touch screen, mouse, keyboard and bar-code or bar code reader
• 7” colour display with touch screen operations
• Accurate & precise results with long life 8 IAD Filters (340nm – 670nm)

Optical Unit

• Interference Filters: 340, 405, 450, 505, 546, 578, 630 & 670 nm
• Silicon Photodiode Detector
• Photometric Range: 0 to 3 OD
• Resolution: 0.0001A
• Light Source: Halogen Lamp

Measuring Unit

• Triple Cuvette Analysis
• 18ul Quartz Flow cell
• 10mm Square Cuvette
• 6mm Round Tube with Adaptor
• Peltier Temperature control: 25°C, 30°C, 37°C & RT
• Minimum Aspiration Volume 200ul by mean of Peristaltic Pump
• 22 Position Multipurpose Inbuilt Incubator 37°C

Analysis Methods

• Endpoint with Reagent blank
• Two Point End
• Kinetic
• Fixed Time
• Turbidimetry
• Coagulation
